Grasshopper

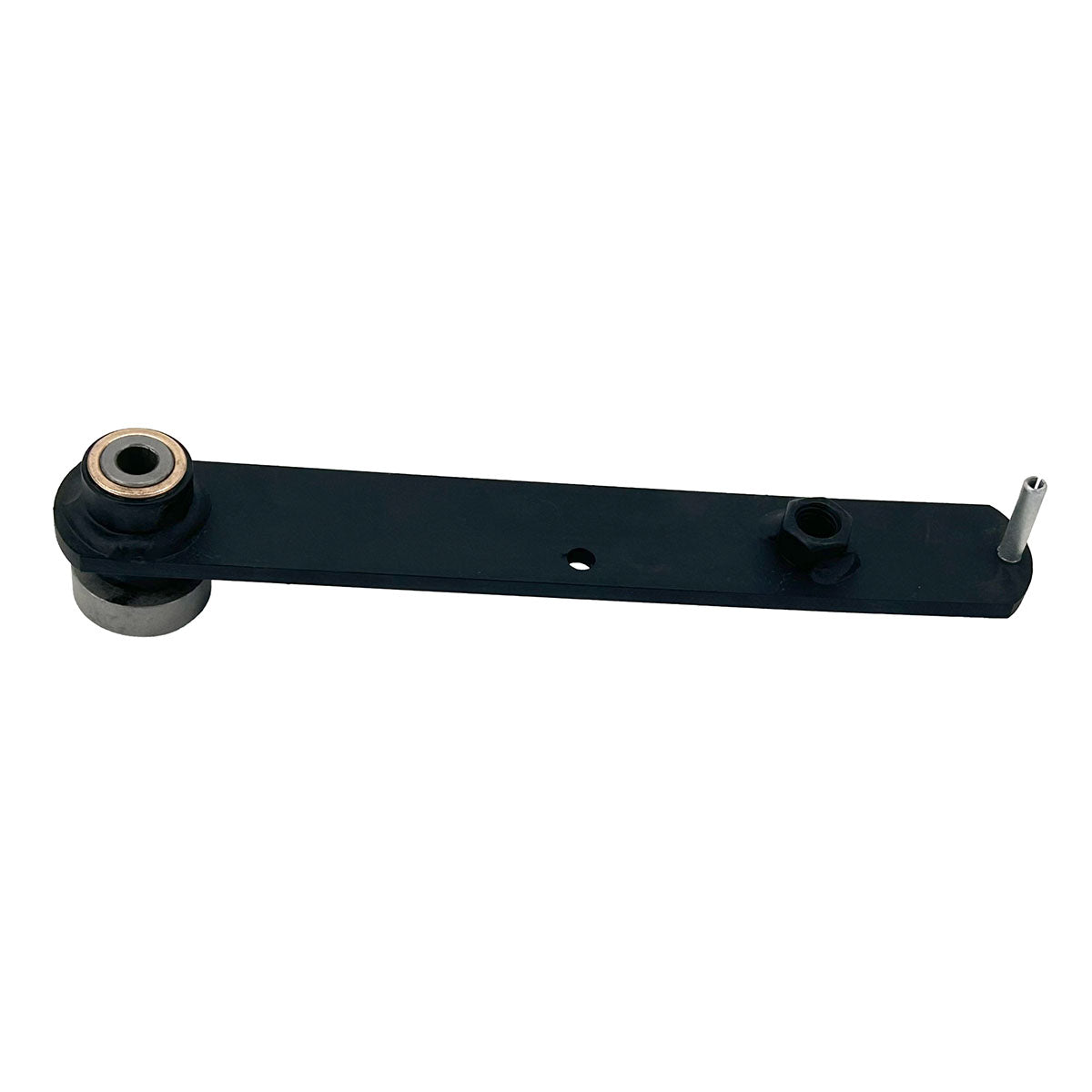

Genuine Grasshopper - Idler Arm Assembly W/guide - Vac - 824479

Genuine Grasshopper - Idler Arm Assembly W/guide - Vac - 824479

824479

IDLER ARM ASSY W/GUIDE - VAC, Grasshopper part 824479, is a Pulleys & Sheaves part.

Supersedes 603043.

Compatibility

Fits 7 Grasshopper models (0 active, 7 legacy).

Show all 7 compatible models
  • Grasshopper 3344-3348 (discontinued)
  • Grasshopper 3452-3461 (discontinued)
  • Grasshopper 3452R-3461R (discontinued)
  • Grasshopper 3661 (discontinued)
  • Grasshopper 524V-526V (discontinued)
  • Grasshopper 525V (discontinued)
  • Grasshopper 9852-9861 (discontinued)

Care & Installation

Pulley, sheave, idler, or roller in the belt-drive system. Check for wobble, bearing play, and groove wear, and confirm alignment with the belt it rides — a worn or misaligned pulley shortens the life of an otherwise good belt. Replace and re-tension the belt whenever a pulley in its path is replaced.

FAQ

What machines does 824479 fit?

Fits 7 Grasshopper models (0 active, 7 legacy). Includes Grasshopper 3344-3348, Grasshopper 3452-3461, Grasshopper 3452R-3461R, Grasshopper 3661, and Grasshopper 524V-526V, and 2 other models.

$38.99 USD
$38.99 USD
