ECHO - CS-501P
ECHO - CS-501P
SKU:
FEATURES

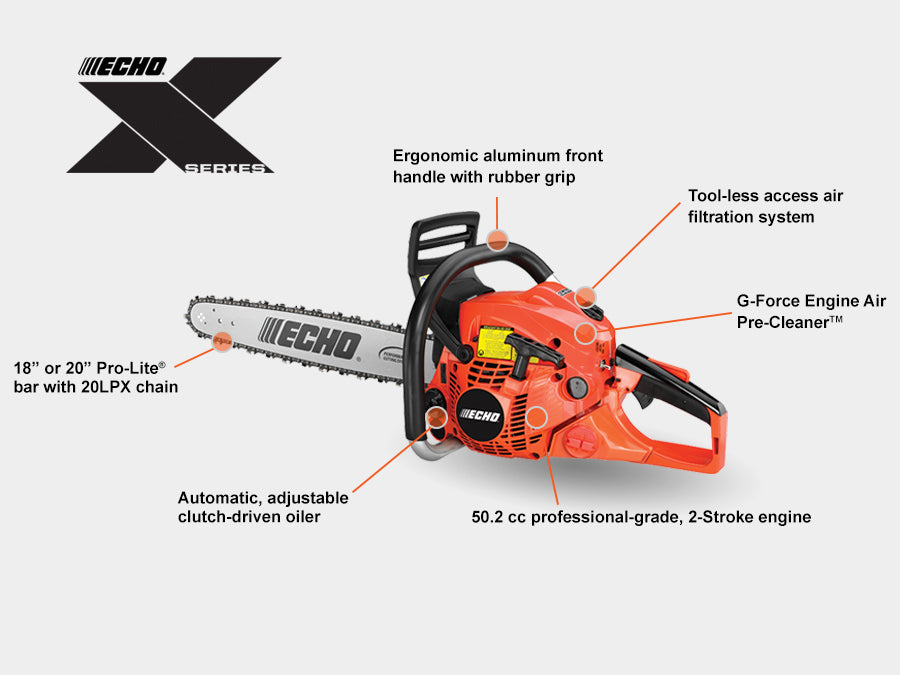

MORE POWER WITHOUT MORE WEIGHT
50.2 cc professional-grade, 2-stroke engine
For outstanding performance and durability
Professional-grade bar and chain
Performance Cutting System(TM) maximizes cutting ability and durability
G-Force Engine Air Pre-Cleaner™
Extends air filter life and reduces maintenance intervals
Captive bar nuts
Prevent loss of hardware
Automatic, adjustable clutch-driven oiler
Operates only when the chain is moving to reduce oil consumption
Top-mounted, tool-less access, two piece air filter
Provides for easy access and easy cleaning
Ergonomic aluminum front handle
Improves comfort and maneuverability
Decompression valve
Reduces rope-pulling effort for easier starts
SPECS
| Engine Displacement (cc) | 50.2 |
| Engine Displacement (cu in) | 3.06 |
| Starting System | Standard |
| Ignition System | Digital |
| Oiling System | Automatic/Adjustable (Clutch-Driven) |
| Vibration Reduction System | Standard |
| Available Bar Lengths (in) | 16, 18, 20 |
| Oil Capacity (fl. oz.) | 9.5 |
| Dry Weight (lb) | 10.6 |
| Sprocket Cover | Plastic |
| Bar Type | Pro-Lite® |
| Sprocket Type | Rim |
| Handle | Aluminum |
| Fuel Capacity (fl. oz.) | 16.6 |
| Warranty | 5 year consumer / 1 year commercial |
