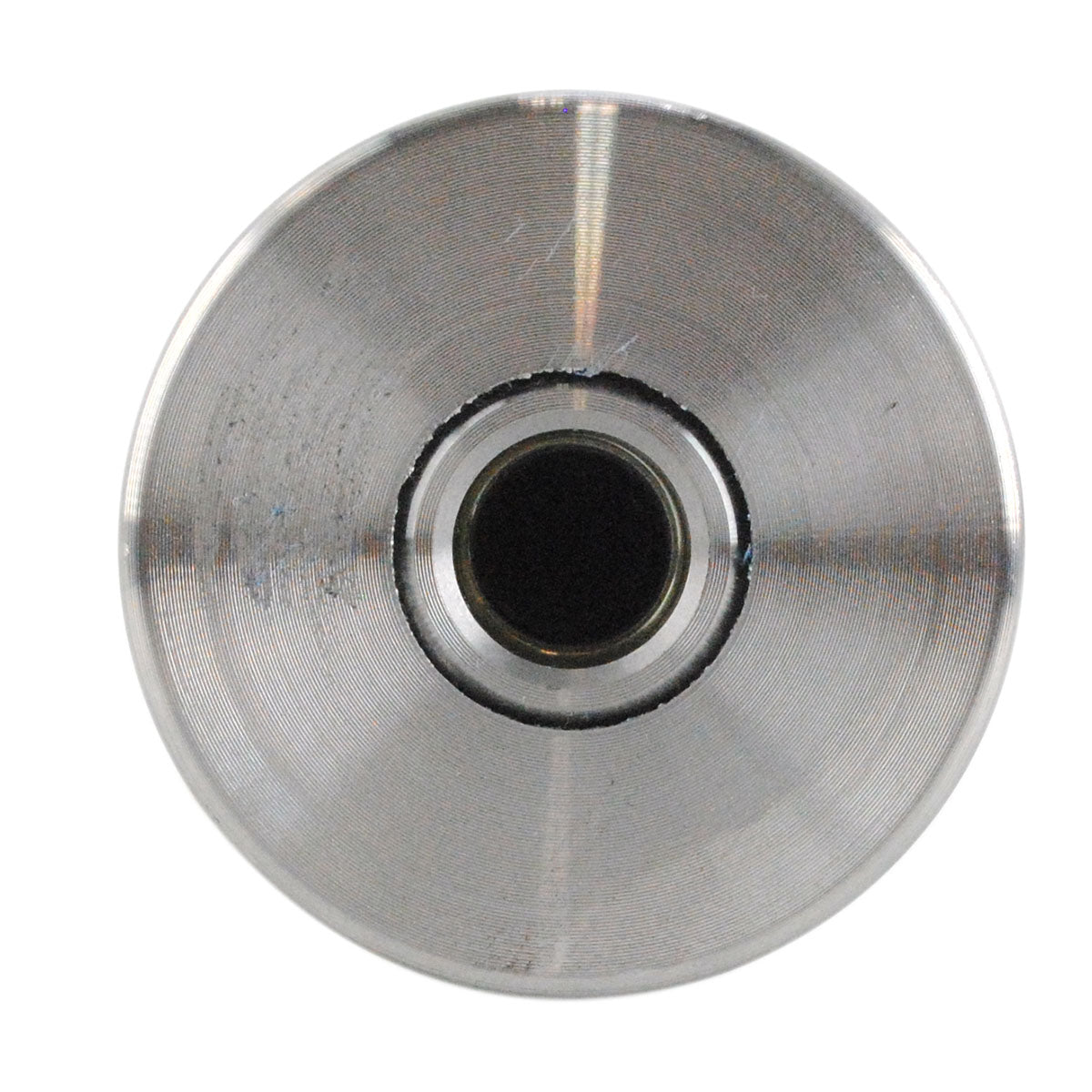

• Grasshopper part 604774 — SPINDLE SHAFT ASSEMBLY
  • Genuine Grasshopper - Spindle Shaft Assembly - 604774 photo 2
  • Genuine Grasshopper - Spindle Shaft Assembly - 604774 photo 3
  • Genuine Grasshopper - Spindle Shaft Assembly - 604774 photo 4

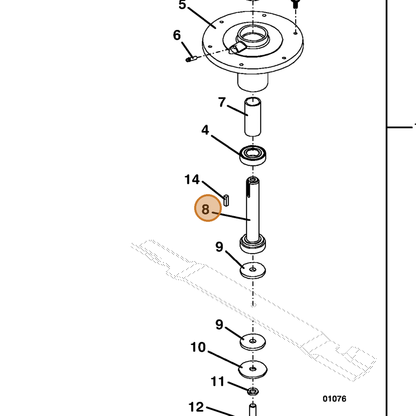

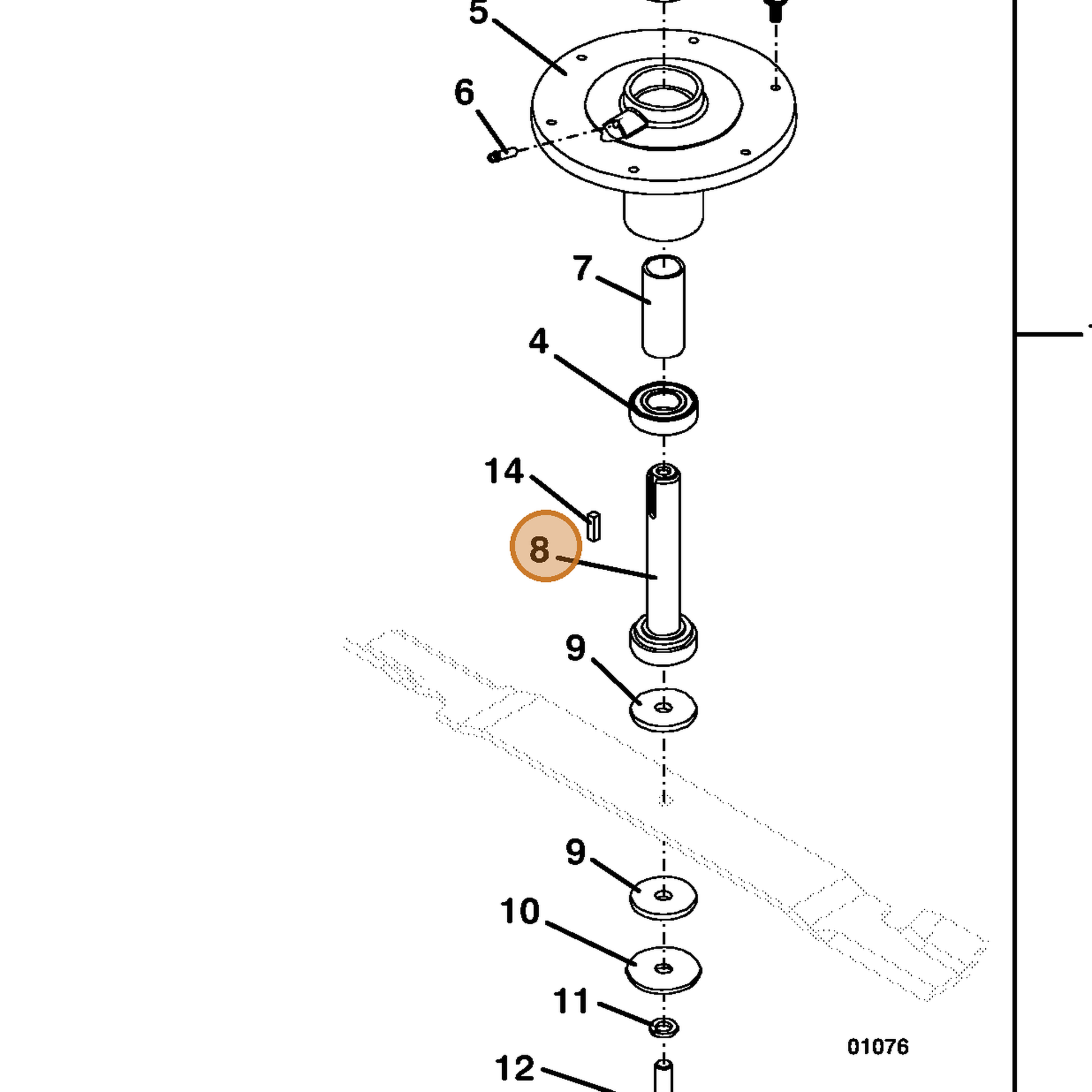

  • Grasshopper part 604774 — IPL diagram snippet (6x zoom, amber highlight)
  • placeholder-pending-real-image
1 6

Grasshopper

Genuine Grasshopper - Spindle Shaft Assembly - 604774

Genuine Grasshopper - Spindle Shaft Assembly - 604774

604774

SPINDLE SHAFT ASSEMBLY, Grasshopper part 604774, is a Deck Components part.

Compatibility

Fits 36 Grasshopper models (4 active, 32 legacy) across the MidMount and Outstander lines.

Show all 36 compatible models
  • Grasshopper 220-225 (discontinued)
  • Grasshopper 223-227 (discontinued)
  • Grasshopper 321D (discontinued)
  • Grasshopper 322D (discontinued)
  • Grasshopper 325 (discontinued)
  • Grasshopper 325A (discontinued)
  • Grasshopper 325D
  • Grasshopper 327 EFI (discontinued)
  • Grasshopper 327A (discontinued)
  • Grasshopper 327KW (discontinued)
  • Grasshopper 328G4 EFI (discontinued)
  • Grasshopper 329
  • Grasshopper 329B (discontinued)
  • Grasshopper 329G4 EFI (discontinued)
  • Grasshopper 333G5 EFI (discontinued)
  • Grasshopper 334.5G4 EFI/ETC (discontinued)
  • Grasshopper 335B (discontinued)
  • Grasshopper 337G5 EFI (discontinued)
  • Grasshopper 337G5 EFI/ETC (discontinued)
  • Grasshopper 3452-3461 (discontinued)
  • Grasshopper 3452R-3461R (discontinued)
  • Grasshopper 3472-3472R (discontinued)
  • Grasshopper 3552R-3561R (discontinued)
  • Grasshopper 3572R (discontinued)
  • Grasshopper 3661 (discontinued)
  • Grasshopper 3761R (discontinued)
  • Grasshopper 400D-1.3L
  • Grasshopper 428D (discontinued)
  • Grasshopper 430D (discontinued)
  • Grasshopper 432 (discontinued)
  • Grasshopper 440B (discontinued)
  • Grasshopper 524V-526V (discontinued)
  • Grasshopper 525V (discontinued)
  • Grasshopper 9772-9772HP (discontinued)
  • Grasshopper 9852-9861 (discontinued)
  • Grasshopper SO37

Care & Installation

Deck or cutting-system structural component (spindle housing, deck shell, or related hardware). Keep the deck level and confirm spindle bearings turn freely without play after any replacement — a deck out of level or a worn spindle shows up as uneven cut quality and accelerated blade/belt wear.

FAQ

What decks does 604774 fit?

Fits 36 Grasshopper models (4 active, 32 legacy) across the MidMount and Outstander lines. Includes Grasshopper 220-225, Grasshopper 223-227, Grasshopper 321D, Grasshopper 322D, and Grasshopper 325, and 31 other models.

What are the specs on SPINDLE SHAFT ASSEMBLY?

Matches the deck size of its listed machines — see the spec table above.

$33.99 USD
$33.99 USD
Sale Sold out
Shipping calculated at checkout.
