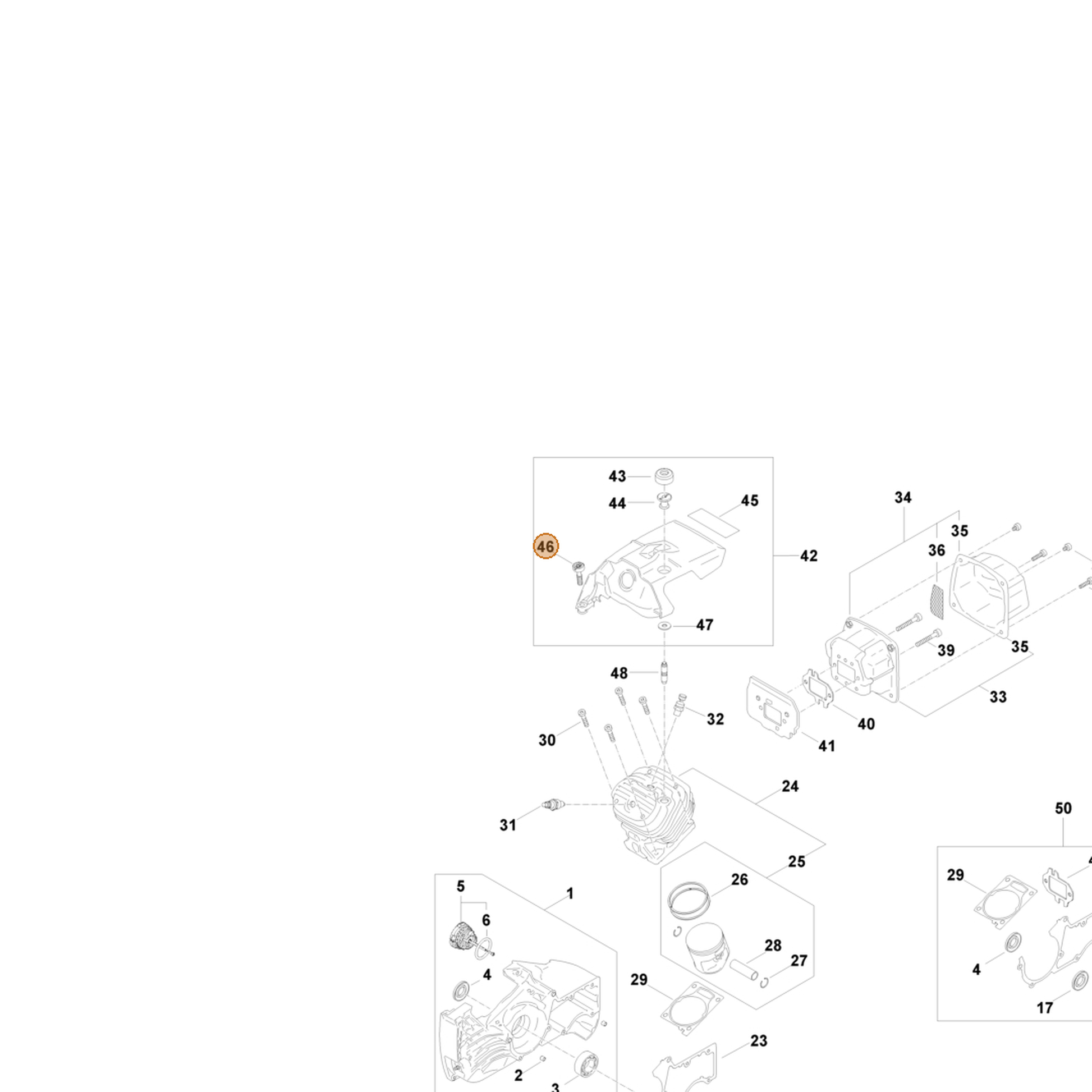

• STIHL part 9022-319-1027 — IPL diagram snippet (6x zoom, amber highlight)
1 2

STIHL

Genuine STIHL - Spline Screw - 9022-319-1027

Genuine STIHL - Spline Screw - 9022-319-1027

9022-319-1027

Genuine STIHL part 9022-319-1027 — SPLINE SCREW.

Compatibility

Fits 24 STIHL models (12 active, 12 legacy).

Show all 24 compatible models
  • STIHL BR 350 (discontinued)
  • STIHL BR 430 Blower
  • STIHL BR 450 Blower
  • STIHL BR 500 (discontinued)
  • STIHL BR 550 (discontinued)
  • STIHL BR 600 Blower
  • STIHL BR 700 Blower
  • STIHL BR 800 Blower
  • STIHL BT 130 (discontinued)
  • STIHL FS 251 Trimmer / Brushcutter
  • STIHL HS 81 R (discontinued)
  • STIHL HS 82 T (discontinued)
  • STIHL HS 87 T (discontinued)
  • STIHL MS 881 Chainsaw
  • STIHL SR 430 Blower
  • STIHL SR 450 Blower
  • STIHL TS 410 Cut-Off Saw
  • STIHL TS 440 Cut-Off Saw
  • STIHL TS 480i (discontinued)
  • STIHL TS 500i Cut-Off Saw
  • STIHL TS 700 (discontinued)
  • STIHL TS 800 (discontinued)
  • STIHL TSA 350.0 (discontinued)
  • STIHL TSA 500.0 (discontinued)

Specifications

Displacement 2.5–7.4 cu-in
Max. air velocity with round nozzle 196–239 mph
Air throughput with round nozzle 642–912 cf/min
Power 2–6.4 kW
Engine power 2.7–8.7 HP
Cutting circle diameter 420 mm
Fuel tank capacity 0.750 l
Tank capacity 25.4 fl oz
Device length without cutting tool 186 cm
Power-to-weight ratio 1.50 kg/kW
Groove width 63 "
Saw chain pitch .404"
Device length with bumper spike 550 mm (without guide bar and saw chain)
Cutting disk diameter 300–400 mm
Max. cutting depth 100–145 mm
Device length with cutting disc 67.5–89 cm
$1.99 USD
$1.99 USD
Sale Sold out
Shipping calculated at checkout.

View full details
