STIHL - TS 420 Cut-Off Saw - 14" Cutquik - 4238-011-2821-US
STIHL - TS 420 Cut-Off Saw - 14" Cutquik - 4238-011-2821-US
SKU:4238-011-2821-US
Couldn't load pickup availability
Patented technology keeps the TS 420 working longer than previous units.
The TS 420 is so popular, it could possibly be called “the standard” to which other cut-off machines are compared. Users like it because it is compact, lightweight, reliable, and proves itself day in and day out, all day long. The TS 420 features all the high-performance features of the TS 410 —including an X2 air filtration system for a clean and smooth-running engine and virtually maintenance-free filters. With the added benefit of a 14” cutting wheel, it will handle cuts up to 4.9 inches in depth. This cut-off machine backs up its larger cutting capacity with a ton of usability features.
NOTE: Abrasive wheel included. Diamond wheel (shown) sold separately.

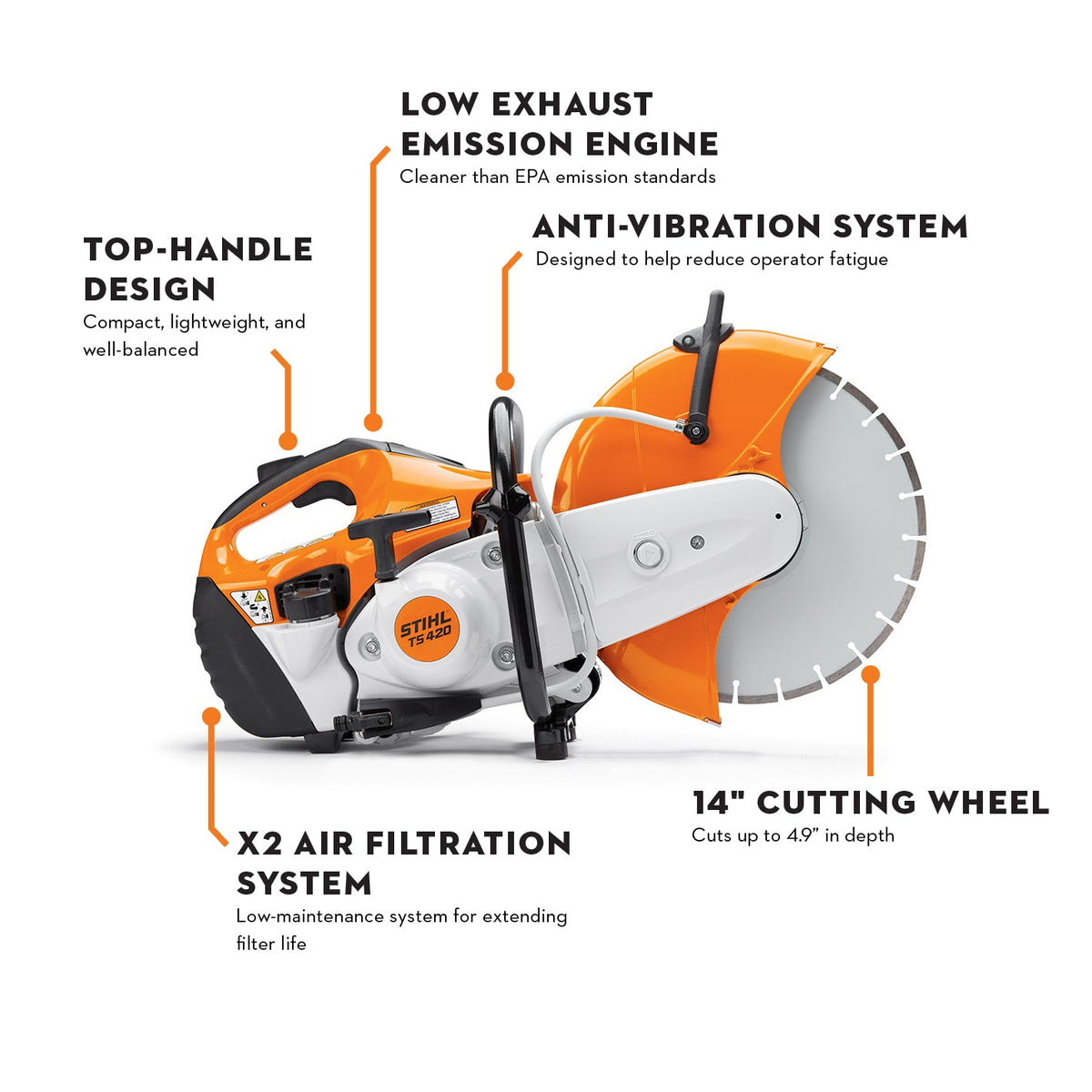

Highlights
- All-purpose, user-friendly cut-off machine
- For use in road construction and landscaping
- Precise cut guidance with the STIHL anti-vibration system
- Low-maintenance filter system thanks to cyclone routing
- For 14" cutting wheels
Specifications
| Displacement | 4.1 in³ |
|---|---|
| Power | 4.288 BHP |
| Device weight without refuelling | 21.5 lb |
| Cutting disk diameter | 13.8 in |
| Max. cutting depth | 4.9 in |
| Device length with cutting disc | 28.3 in |
Features
Anti-Vibration System
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Bayonet-Style Filler Cap
Includes retainer for easy use, even with gloves on.
Ergonomic Grip
The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
IntelliCarb™ Compensating Carburetor
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
STIHL ElastoStart™
The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
Semi-Automatic Belt Tensioning
With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings
Water Connection
Water connection with shut-off valve and quick connector.
X2 Air Filtration System
The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
